Slurry

About slurry product(Wet powder)

About slurry product

The cosmetic color powder(foundation and eye shadow) need to be mixed with solvent (IPA, ethanol, isoparaffin, water and so on), to make it slurry state like mayonnaise.
This slurry is filled in the pan from top or back with single color or multi color in the same time.
In the moment of press, the solvent is sucked from upper mold. After that, the product needs the drying process.
About 80 % of the eye shadow product from cosmetics manufacture in Japan is produced by slurry process, because of its good quality.

Feature of the slurry product

Feature of the slurry product

Less hardness difference
Easier to press the powder which has much pearl
The product become looseness(such as sponge state), so the touch feeling is much better and smooth.
The small powder piece on the edge of pan is much less, so this small powder piece doesn't fall down in the product shipment.
Good environment for operator regarding powder dust exposure, because powder dust doesn't fly in the air(because of slurry).

Product feature and productivity of BIM(back filling)

Product feature and productivity of BIM

The slurry is filled in the pan with the pressure from back side of the pan.
The solvent is sucked from upper mold through the paper and cloth(screen).
And final press is necessary according to the powder formula and design.

Good for small size of the pan and multi-cavity, and also multi color, so normally used for eye shadow product.
Possible to fill sharp and narrow area with less hardness difference, which is impossible for dry powder.
Possible to produce doom shape, because the slurry is filled with pressure.
It is possible to reduce the cost for the pan, mold of the pan and assembly process, as compared with powder press product,because it is possible to fill several color in the same time in the pan.
Possible to reduce pan clean up process, because powder doesn't put on the out side of the pan, except around filling hole.
The pan needs to have hole in the backside of the pan to fill slurry.

Product feature and productivity of top filling

Product feature and productivity of top filling

The slurry is filled from the top side of the pan with every time same quantity.
The first press and final press is necessary to suck the solvent through the paper and cloth.

It is possible to fill slurry in short time, so normally used for foundation which needs much powder quantity, and also used for face color with multi color.
In the case of the multi color with top filling, it is less cost than dry powder press.
It is unnecessary to make the hole on the back side of the pan, and possible to use both aluminum and plastic pan.

The point of slurry filling machine selection for industrial type

The point of slurry filling machine selection for industrial type

Slurry filling machine rotary type is recommendation, if you would like to produce BIM (back filling) product with single or multi color.
In case of multi color, the pan must have partition inside of it.
Slurry filling machine line type is recommendation, if you need versatile function which can produce BIM product and top filling product.

BIM product

  BIM with partition
BIM with partition
BIM without partition
BIM without partition
BIM dome product
BIM dome product
Slurry filling machine line type
Select Option
Slurry filling machine rotary type ×
Pilot slurry filling machine
Slurry filling machine desk top type
only single color
×

Top filling product

  Single color
Single color
Multi color
Multi color
Slurry filling machine line type
Slurry filling machine rotary type
Pilot slurry filling machine
Slurry filling machine desk top type
manual filling
×

Slurry filling machine line type

Photo of Slurry filling machine line type

Slurry filling machine line tyle is industrial type for BIM and top filling, the product is transported to the linear direction in the process.
This machine is delivered to many cosmetics manufacture OEM company in Japan.
This machine has versatile function, and the capacity production for top filling is high, because it is possible to put 2 pans in 1 holder.

  • Photo02 of Slurry filling machine line type
  • Photo03 of Slurry filling machine line type

For example, in case of BIM, it is possible to produce 32 pcs/min, 4 color eyeshadow.
*Pan size less than 30mm x 70mm, Filling time is less than 4 sec.
All setting parameter which has influence on the product quality is from touch panel, and it is possible to save and read out these setting parameters.
The servo motor is used for filling pump. This servo motor is controlled by 2 system, one is the torque control(pressure filling) for back filling(BIM), and the other is position control(same amount filling) for top filling.
It is possible to set the filling amount, filling pressure, filling speed for each pump or each color.
The servo motor is used for upper mold up/down movement in press unit. For the press, the upper mold goes down with high speed with position control to reduce free running time, and the servo motor control is switched to torque control for press, so it is possible to reduce the time for press
The actual pressure to the powder in the moment of the press is indicated in the screen every time, so it is possible to monitor the relation and clearance between upper mold and pan, and if the machine is running appropriately or not, too.
In case of top filling, the special figure of the upper mold is used in the first press, to avoid leaking the slurry goes outside the pan.
If the increased safety is required for the explosion-proof, inside of the electric box is pressurized by the air to avoid the flammable gas go inside of the electric box.
This air pressure which supplies in the electric box is detected by the sensor, in the case of this pressure is lower than appropriate pressure, the electric power supply will be shut down.

BIM(back filling) process flow

  • Pan supply by operator manually
  • Pan detect
  • Pan cleaner by air blow
  • BIM back filling
  • Second press
  • Product eject
  • Take out product by operator manually

Top filling process flow

  • Pan supply by operator manually
  • Pan detect
  • Pan cleaner by air blow
  • Put the glue in the pan(option)
  • First press
  • Second press
  • Product eject
  • Take out product by operator manually

Specification

Power source
Electric : AC200V(3Phases) 50A-1line
Air : More than 0.5Mpa-1 line
Object
Cosmetic powder for foundation, eye shadow, face color and so on
Number of color
4 - 6 colors(Pumps)
Pan size
2 pans in 1 holder : 70mm x 70mm(max)
4 pans in 1 holder : 30mm x 70mm(max)
8 pans in 1 holder : 25mm x 30mm(max)
Speed
2 pans in 1 holder BIM : 16pcs/min
4 pans in 1 holder BIM : 32pcs/min
8 pans in 1 holder BIM : 64pcs/min
2 pans in 1 holder Top filling : 16pcs/min
*In case of the filling time is less than 4 sec
Operator
2 - 4(Pan supply, product ejection)
Transportation
Pitch transportation
Press mechanism
Servo motor Pressure : 50kgf - 350kgf
Pump mechanism
Servo motor BIM : Torque(pressure) control
Top filling : Position control

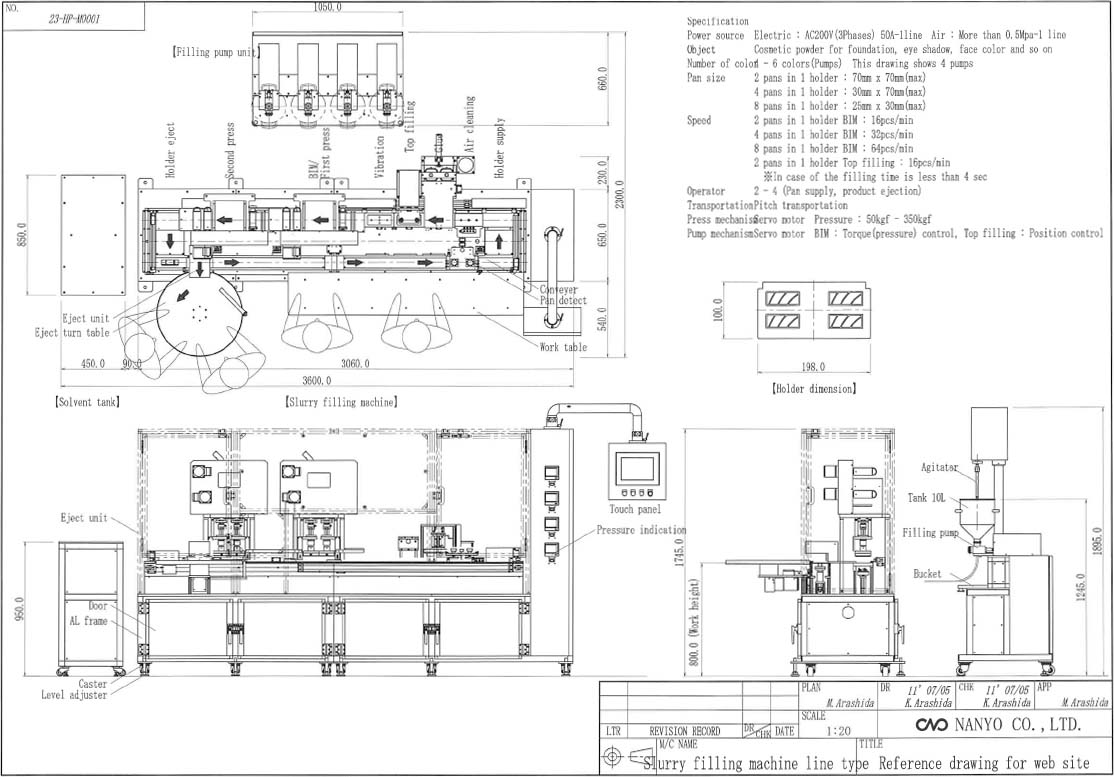

slurry_filling_machine_line_type

PDF download

Slurry filling machine rotary type

Photo of Slurry filling machine rotary type

Slurry filling machine rotary tyle is industrial type for BIM.
The size of this machine is smaller than line type.
And this machine is designed as main product is BIM, so the speed of BIM is high.
The mold cost is almost half of the line type.
The safety of this machine is better, because the pan supply and ejection are outside of the machine, so easier to apply for CE regulation.

  • Photo02 of Slurry filling machine rotary type
  • Photo02 of Slurry filling machine rotary type

It is possible to reduce the time for mold change, because number of the mold is less, and due to smaller machine size.
It is possible to reduce the number of the operator, with using the pan supply feeder which is option.
All setting parameter which has influence on the product quality is from touch panel, and it is possible to save and read out these setting parameters.
The servo motor is used for filling pump. This servo motor is controlled by 2 system, one is the torque control(pressure filling) for back filling(BIM), and the other is position control(same amount filling) for top filling. It is possible to set the filling amount, filling pressure, filling speed for each pump or each color.
The servo motor is used for upper mold up/down movement in press unit. For the press, the upper mold goes down with high speed with position control to reduce free running time, and the servo motor control is switched to torque control for press, so it is possible to reduce the time for press.
The actual pressure to the powder in the moment of the press is indicated in the screen every time, so it is possible to monitor the relation and clearance between upper mold and pan, and if the machine is running appropriately or not, too.
In case of top filling, the special figure of the upper mold is used in the first press, to avoid leaking the slurry goes outside the pan.
If the increased safety is required for the explosion-proof, inside of the electric box is pressurized by the air to avoid the flammable gas go inside of the electric box. This air pressure which supplies in the electric box is detected by the sensor, in the case of this pressure is lower than appropriate pressure, the electric power supply will be shut down.

Specification

Power source
Electric : AC200V(3Phases) 20A-1line
Air : More than 0.5Mpa-1 line
Object
Cosmetic powder for foundation, eye shadow, face color and so on
Number of color
2 colors(Pumps)
Pan size
1 pan in 1 holder : 60mm x 70mm(max)
2 pans in 1 holder : 30mm x 60mm(max)
4 pans in 1 holder : 25mm x 30mm(max)
Speed
2 pans in 1 holder BIM : 16pcs/min
4 pans in 1 holder BIM : 32pcs/min
8 pans in 1 holder BIM : 64pcs/min
1 pan in 1 holder Top filling : 8pcs/min
*In case of the filling time is less than 4 sec
Operator
2 - 4(Pan supply, product ejection)
Transportation
Turn table
Press mechanism
Servo motor Pressure : 50kgf - 350kgf
Pump mechanism
Servo motor BIM : Torque(pressure) control
Top filling : Position control

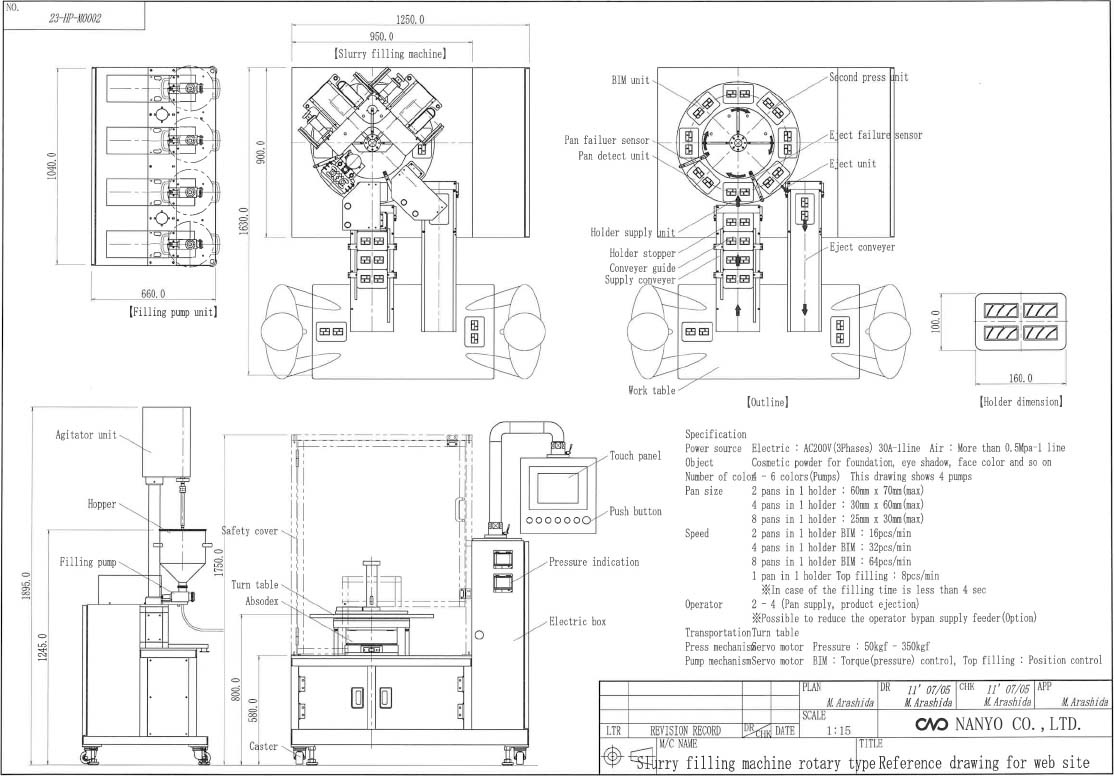

slurry_filling_machine_rotary_type

PDF download

Pilot slurry filling machine

Photo of Pilot slurry filling machine

This machine is composed of 2 filling pumps, top filling nozzle unit, BIM filling unit and press unit.
Each unit in this pilot machine has same structure with industrial machine.
So the filling and press test is possible which has repeatability.

The mold (Vacuum pad and BIM filling unit except BIM filling nozzle) is possible to use combinedly with industrial machine.
All setting parameter which has influence on the product quality is from touch panel, and it is possible to save and read out these setting parameters.
The servo motor is used for filling pump. This servo motor is controlled by 2 system, one is the torque control(pressure filling) for back filling(BIM), and the other is position control(same amount filling) for top filling. It is possible to set the filling amount, filling pressure, filling speed for each pump or each color.

Specification

Power source
Electric : AC200V(3Phases) 50A-1line
Air : More than 0.5Mpa-1 line
Object
Cosmetic powder for foundation, eye shadow, face color and so on
Number of color
4 - 6 colors(Pumps)
Pan size
2 pans in 1 holder : 70mm x 70mm(max)
4 pans in 1 holder : 30mm x 70mm(max)
8 pans in 1 holder : 25mm x 30mm(max)
Press mechanism
Servo motor Pressure : 50kgf - 350kgf
Pump mechanism
Servo motor BIM : Torque(pressure) control
Top filling : Position control

pilot_slurry_filling_machine

PDF download

Slurry filling machine desk top type

Photo of Slurry filling machine desk top type

The test of top filling and BIM is possible with this machine.

The actual pressure to the powder in the moment of first and second press, and filling pressure in case of the BIM is indicated with graphic on the monitor, because press unit has the load cell.
Adjustment of the press pressure, BIM filling pressure and vacuum pressure is from regulator.
The parameter setting of Press time, BIM filling time, Vacuum time and so on is from operation panel.
Switch the vacuum pad is by handle manually, between vacuum pad for BIM/first press and second press.

Specification

Power source
Electric : AC100V(Single phases)-1line
Air : More than 0.5Mpa-1 line
Object
Cosmetic powder for foundation, eye shadow, face color and so on
Number of color
1 color(BIM) In case of top filling, filling is manual.
Pan size
60mm x 60mm(max)
Press mechanism
Air cylinder(1.4kN in air pressure 0.5MPa)
Pump mechanism
Air cylinder

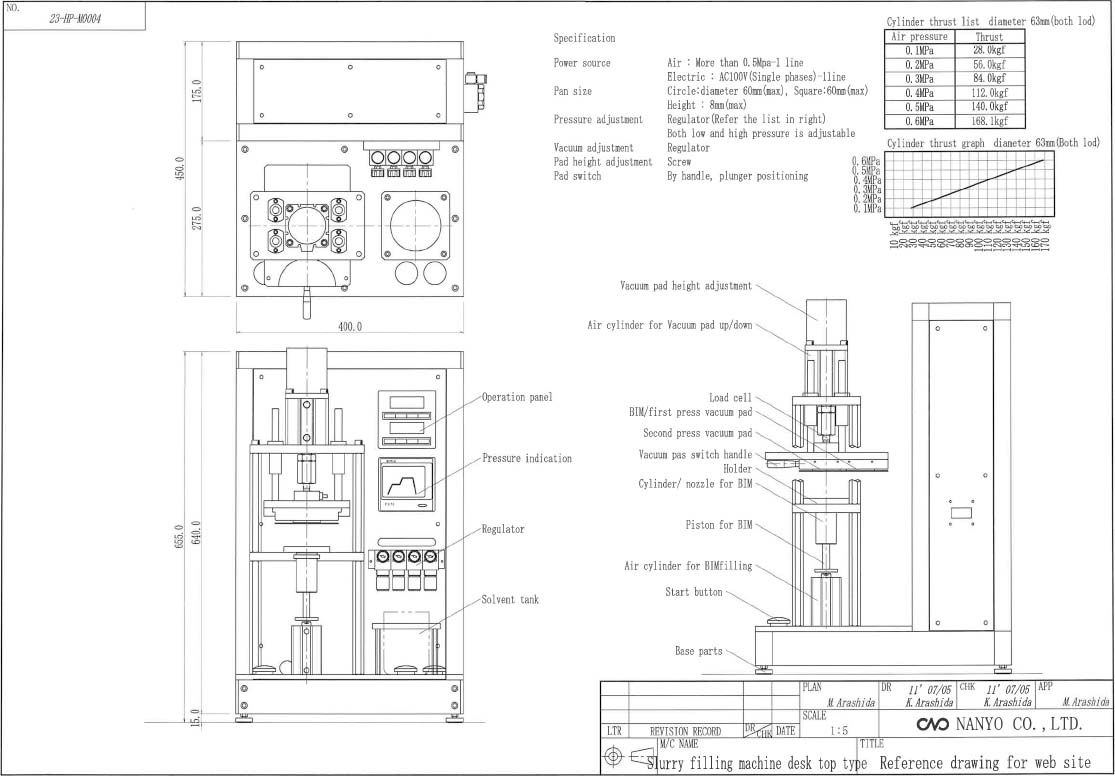

slurry_filling_machine_desk_top_type

PDF download
